Gigatome Polycut-Legacy
Large scale fully automated heavy-duty sledge microtome for histology and material sciences.
| |
- Specimen sizes up to max. 200 x 250 x 70 mm
- Section thickness range from 0 µm to 1.000 µm
- Sectioning Speed 0,5 - 100 mm/s, adjustable in 0,1 mm steps

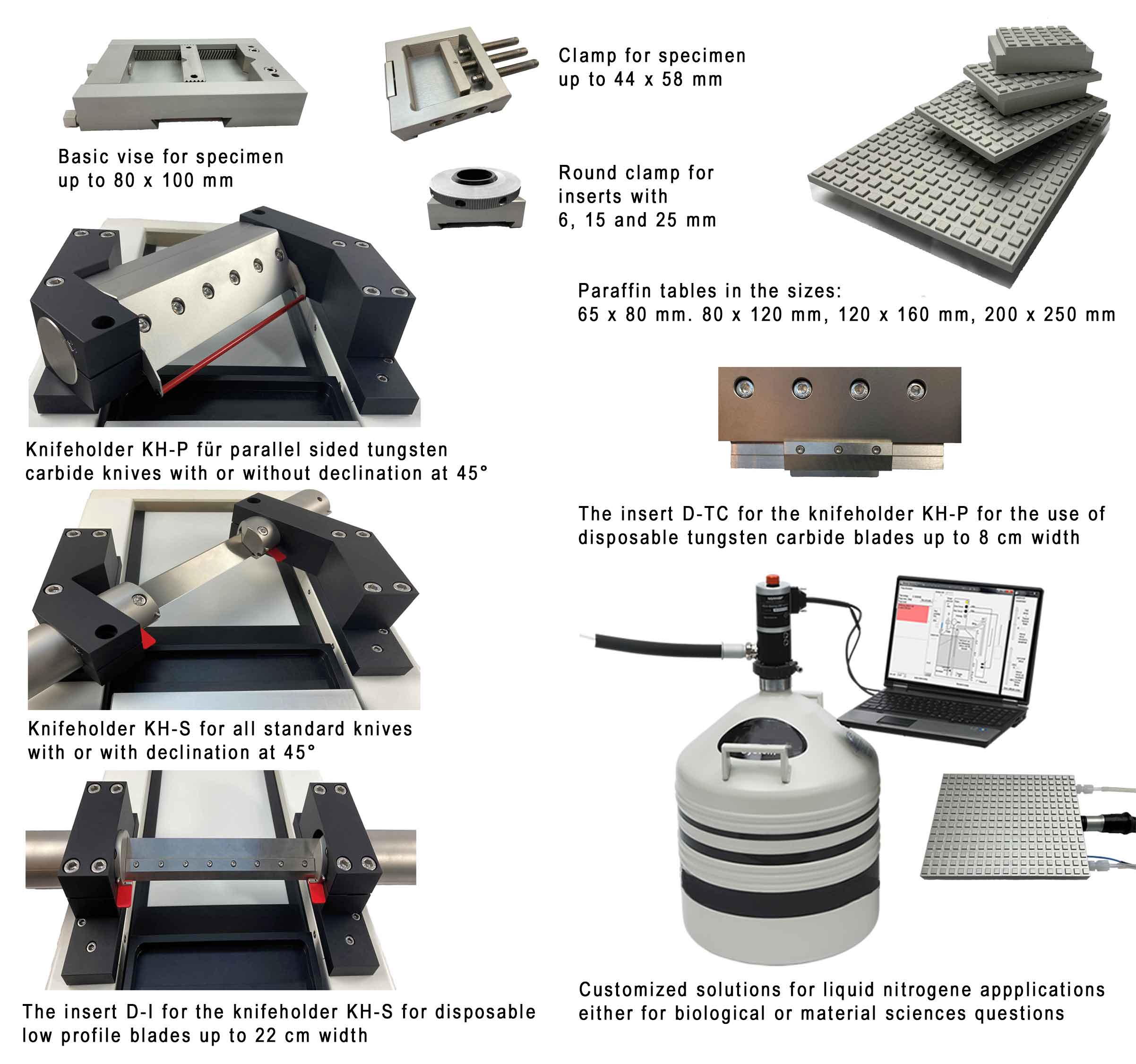

- Uncountable special knifeholders and various custom made accessories available
- all knifeholders are available without declination or with fixed 45° declination
- Multiple accessories like clamps, paraffin tables, magnifiers or a liquid nitrogene solutions either for biological or material sciences specimen are available
- Intuitive operation
- Small footprint table microtome with small intuitive control unit with integrated touch screens and high precise knobs and turning wheels
- X/Y-orientable specimen
- lateral moveable clamps and tables for the best benefit of the complete knife width
- Power Voltage 110 through 240 Volts
- Highly precise DC and stepper motors
- High class cross roller guides
- High-end spindle for most precise sections
- Low maintenance construction
- 80 kg microtome for the perfect stability
- Made in Germany
|
For more information please feel free to contact us directly.
MICROTOME KNIVES & RESHARPENING SERVICE
| Knife Type |
Order Number |
| Tungsten Carbide Knife 16cm D, 40° or 50° |
TC40 or TC50 |
| for Polcut-Legacy Knifeholder KH-P or Leica/Reichert-Jung Polycut Knifeholder A |
|
| |
|
| Tungsten Carbide Knife 16cm CC |
TCCC |
| for Polcut-Legacy Knifeholder KH-C or Leica/Reichert-Jung Polycut Knifeholder C |
|
| |
|
| Tungsten Carbide Knife 16cm D (for rotary microtomes) |
R16D |
| made from 100% tungsten carbide! no steel body, no bonding of only little TC on top - therefor much more lifetime |
|
| |
|
| Tungsten Carbide Knife 16cm C (for rotary microtomes) |
R16C |
| made from 100% tungsten carbide! no steel body, no bonding of only little TC on top - therefor much more lifetime |
|
| |
|
| Standard Steel Knife with C edge 160mm (for all sledge & rotary microtomes) |
S160C |
| Standard Steel Knife with C edge 220mm (for all sledge & rotary microtomes) |
S220C |
| Standard Steel Knife with C edge 300mm (for all sledge & rotary microtomes) |
S300C |
| |
|
| Standard Steel Knife with D edge 160mm (for all sledge & rotary microtomes) |
S160D |
| Standard Steel Knife with D edge 220mm (for all sledge & rotary microtomes) |
S220D |
| Standard Steel Knife with D edge 300mm (for all sledge & rotary microtomes) |
S300D |
| |
|
| TC65 Disposable Tungsten Carbide Blades ( 5 per box) |
TC65 |
| |
|
| Please ask us for prices! |
|
| |
|
| We can resharp all microtome knives in half turn-around-times as our competitors! |
|
| Please ask for prices! |
|
| |
|
| |
|
| |
|

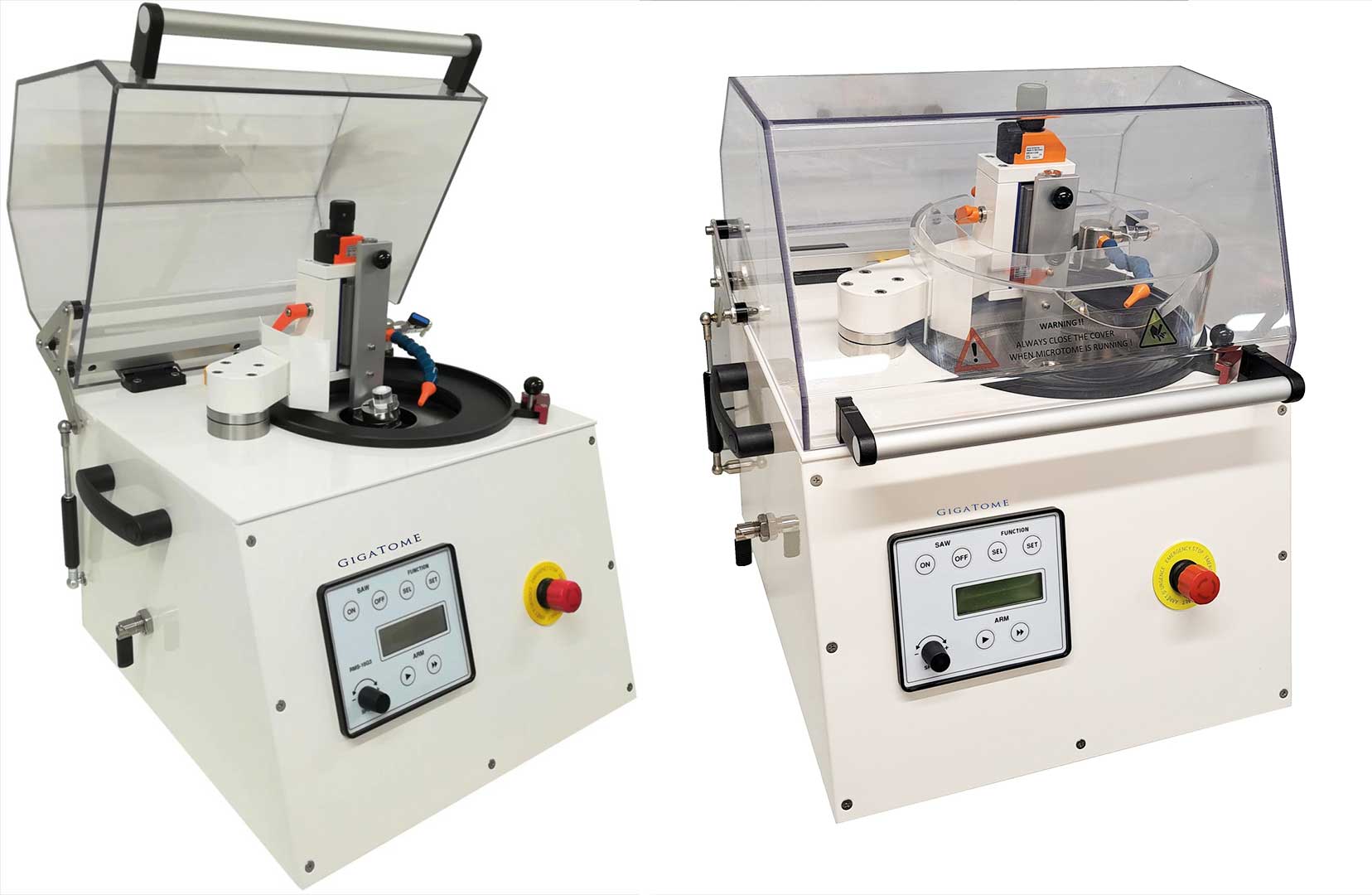

Gigatome Micro-Saw
Tabletop Saw Microtome with Diamond Blade for ultra hard specimen
For ultra hard specimen like bones, teeth, implants, minerals or geological materials, ceramics, porcelain, glass fibres, cables, artificial biomaterial device, all MMA embeddings. Section thickness of approximately 30 µm or more For specimen with a diamter up to 40 mm Saw Speed: 600 rpm Sectioning thickness, adjustable in 1 µm-steps Control panel Electronic movable arm speed with control function Digital height adjustment Adjustable sample fixation Water connection for liquid cooling Gripper system (optional) Cooling tank with pump (optional)
High-End "Made In Germany!"
|
